INSULATED CONTROL DAMPERS

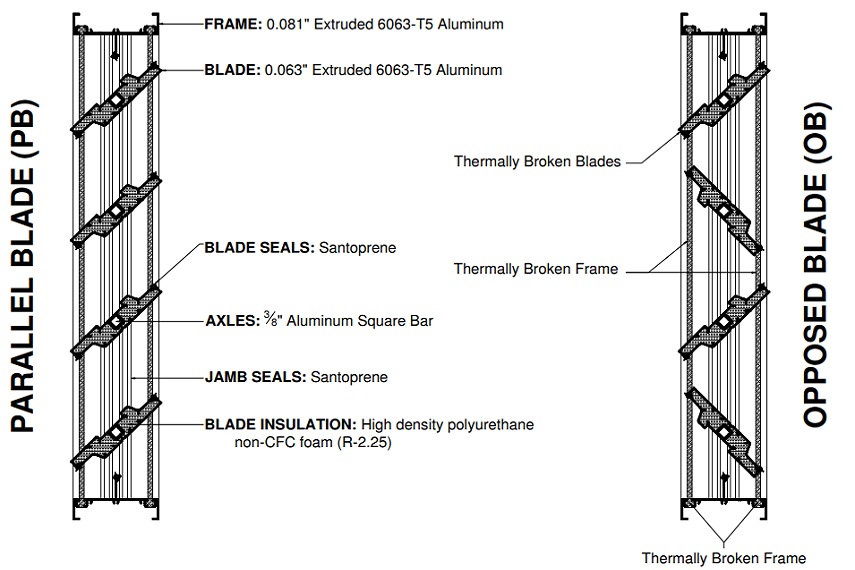

Insulated Extruded Aluminium Control Damper features a true thermal-break blade design and is suitable for use in low to medium velocity and pressure exhaust or intake applications. The standard co-extruded santoprene blade and jamb seals provide ultra low leakage characteristics. Optional ELT silicone seals and thermally-broken frame provide maximum performance for extreme low temperature applications.
Designed for
- Use in low to medium velocity and pressure exhaust or intake applications
- Provide ultra low leakage characteristics
- Provide maximum performance for extreme low temperature applications
Dimensions
No. of Panels |
Maximum Heigh |
Maximum Width |
Maximum Area |
Depth |
|---|---|---|---|---|
| Single Panel | 60" |
48" |
20 sq ft |
4" |
| Double Panels | 60" |
96" |
40 sq ft |
4" |
| Triple Panels | 60" |
144" |
60 sq ft |
4" |
| Quadruple Panels | 60" |
192" |
80 sq ft |
4" |
IMPORTANT NOTE: Sizing for general informations only. Please contact our Engineering Department for details.
